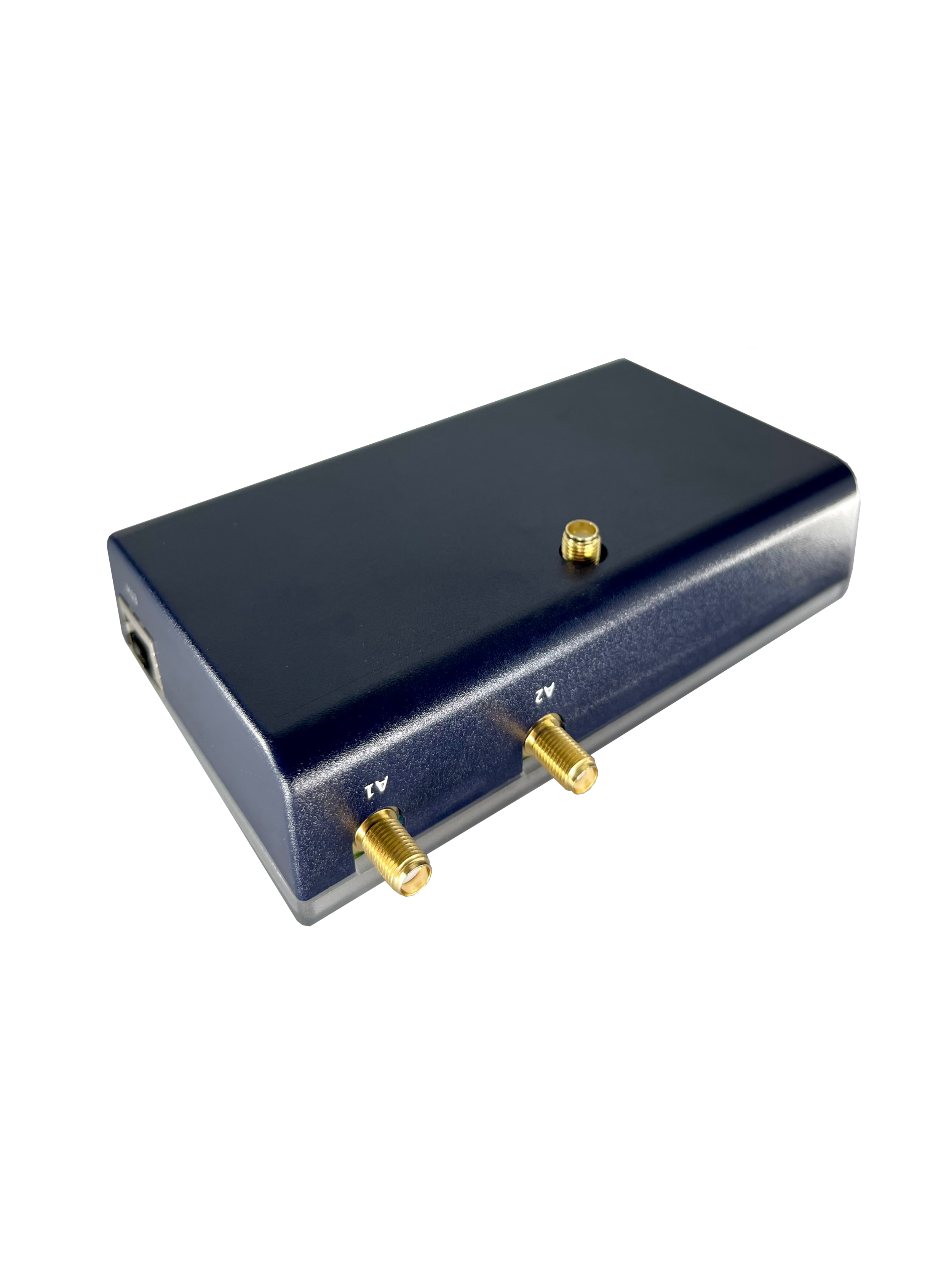

Sensoco Multifunctional M2M Gateway MC100

4G LTE IoT Gateway with Radiocrafts,
WiFi, GPS and Ethernet interface.

The MC100 IoT Gateway provides an industry grade solution for interfacing Radiocrafts communication modules to other communication technologies.

With a wide variety of connectivity options like WIFI, CAN, MODBUS, Ethernet and 4G (LTE), the gateway is well equipped to process and transport even the most demanding workloads. Certified integration with Cloud Computing solutions make the MC100 an ideal platform for today's complex solutions.

The MC100 provides an open, Linux based, platform for programming in Python, C, C++, Javascript as well as Node-RED. Software tools supporting protocols like WMBUS and intelligent pre-processing are available and significantly reduce the integration effort, allowing you to realize your ideas faster.

GREATECH can also assist and provide additional customized Hard- and Software adaptations if you have specific needs that are not met out-of-the box.

  • Programmable logic gateway 4G LTE modem

    • 5G planned in future releases

    • Fallback to 3G and 2G networks

  • Full support for Radiocrafts Modules

  • Up to 2 Radiocarfts Modules per Gateway

    • Wireless MBUS, WIZE, SIGFOX etc.

    • Radiocrafts Industrial IP Mesh (RIIM)

    • Radiocrafts Industrial Internet of Things (RIIoT)

    • Radiocrafts frequency bands 169 MHz, 433 MHz, 868 MHz, 915MHz and 2.4GHz

    • Selective filters and amplifiers

  • Ready for mobile Internet communication, easy web-based configuration

  • Ethernet, 802.11, USB, RS232 interface

  • Linux distribution based on Kernel 4.14, mainline- compliant

  • Optimized for the ARM-based MC100 Gateway

  • Node-RED – flow-based programming tool already installed

  • Supports comprehensive cloud and server protocols

  • Data storage on internal Flash or micro SD card

  • Wide temperature range, industrial grade platform

  • Wall or DIN rail mounting

  • Cloud integration (Azure etc.)

  • Smart Data processing and filtering

  • Bulk transfer via SCP, SFTP transfer based per period

  • Rest/MQTT transfer/Forward

  • Programmable, Tooling for many protocols
